Bison 7′ Rear Blade BINB120-210
Description

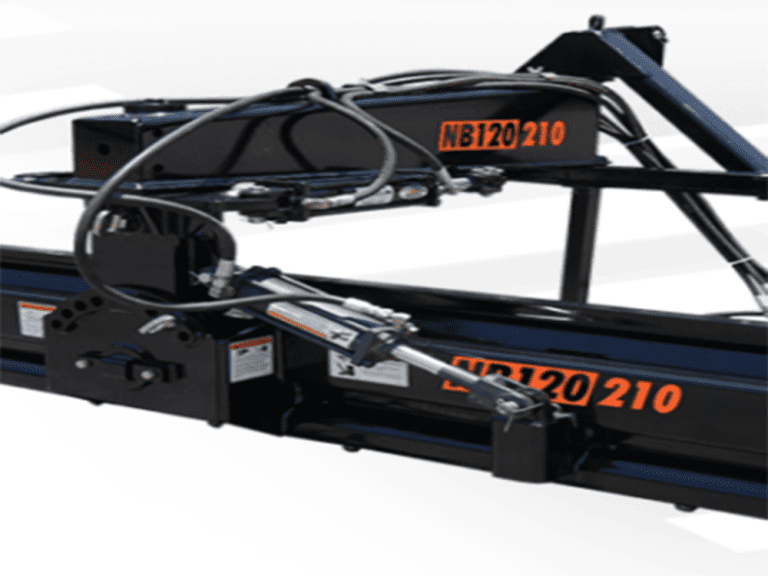

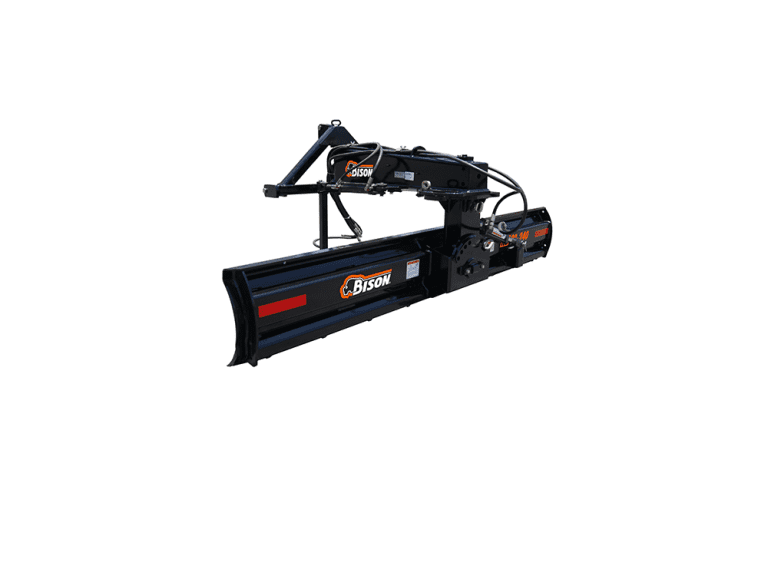

Bison 7′ Rear Blade – BINB120-210
NB Series Features
• For a wide range of grading applications from road leveling to dam maintenance.
• Models offered for different size tractors ranging from 65-120 HP.
• The NB Series is capable of lateral and tilt movements by either manual or hydraulic adjustments.
• The Blade can rotate 360 Degrees without unhooking equipment.
• Both the tilt and swing adjustments can be accomplished without changing or moving cylinders, as in other models.
| Stock Number: | BINB120-210 |
| Make | |
|---|---|
| Model | |
| Blade Length | 7 ft. |
| Weight (Manual/Hydraulic) | 970 lbs./1070lbs. |
| Maximum Horsepower | 90 |
| Swing Angle | 10 positions up to 50°, left or right (manual) |
| Offset Adjustment | 4 positions up to 30", left or right (manual) |
| Tilt Angle | 3 positions up to 50°, left or right (manual) |
